Rinnai LS 1000 Gas Fireplace

Heating

$11,999 *

RRP incl GST

A frameless power-flued inbuilt gas fireplace with highly realistic wood and stone burn media — the LS 1000 pairs a metre-wide glass view with Wi-Fi control, 5-star efficiency and single- or double-sided layouts, distinct from the Flametech™ LS 1000F line.

Show More
Gas
8.0 kW max heat output
5-star energy rating
Wi-Fi control included
1000 mm viewable glass width
Made in New Zealand
Price shown is for the LS 1000 gas fireplace appliance only. Required accessories and services — including power flue, installation, peninsular kit (double-sided) and hearth — are quoted separately.

LS 1000 lifestyle single or double sided

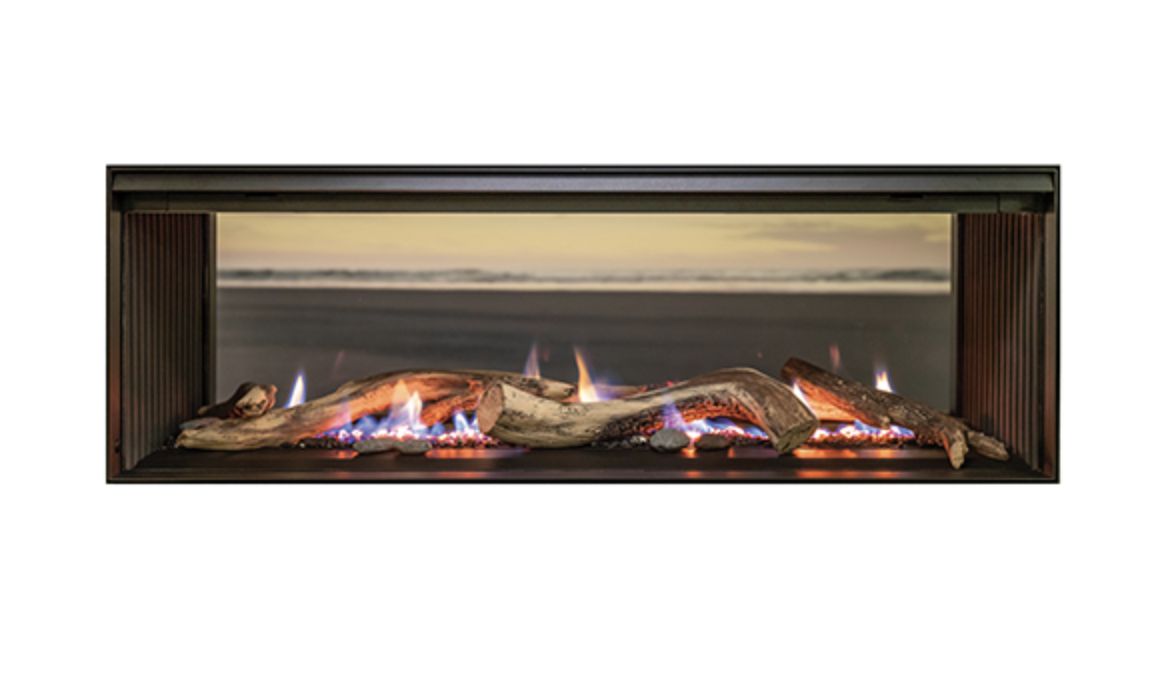

The Rinnai LS 1000 Gas Fireplace is a frameless power-flued inbuilt gas fire for homeowners who want realistic wood and stone burn media at metre width — without the Flametech™ self-burning log technology of the LS 1000F. Highly detailed logs or pebbles sit beneath a generous flame picture, with non-reflective glass keeping the view clean. At 1435 mm appliance width, the LS 1000 offers twice the ambience when configured double-sided — warmth and light visible from both sides of the installation.

Wood, stone, wide glass

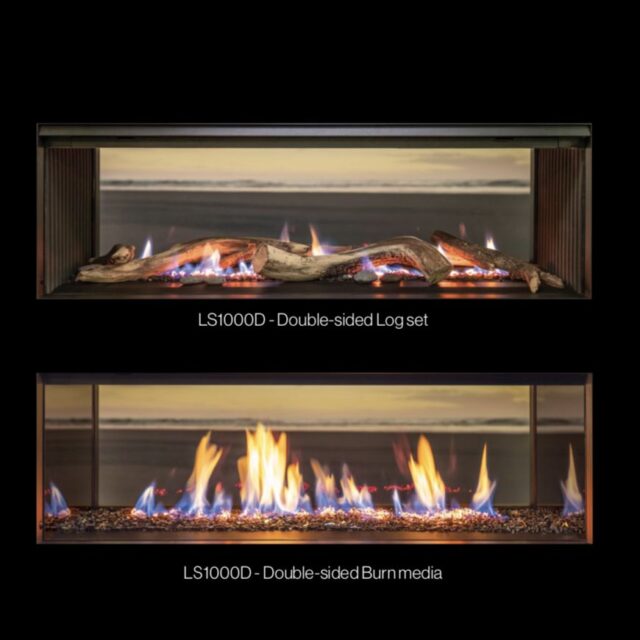

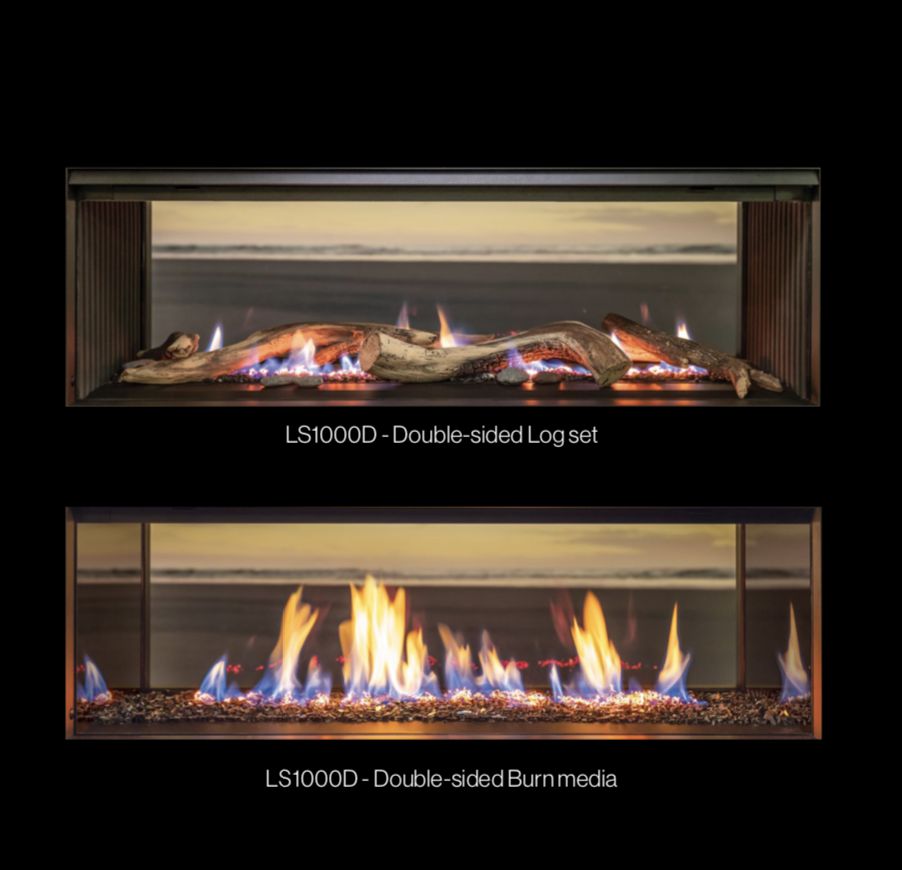

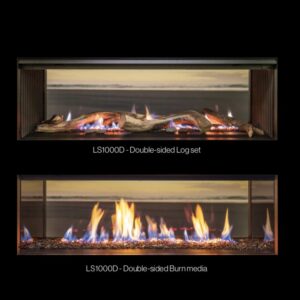

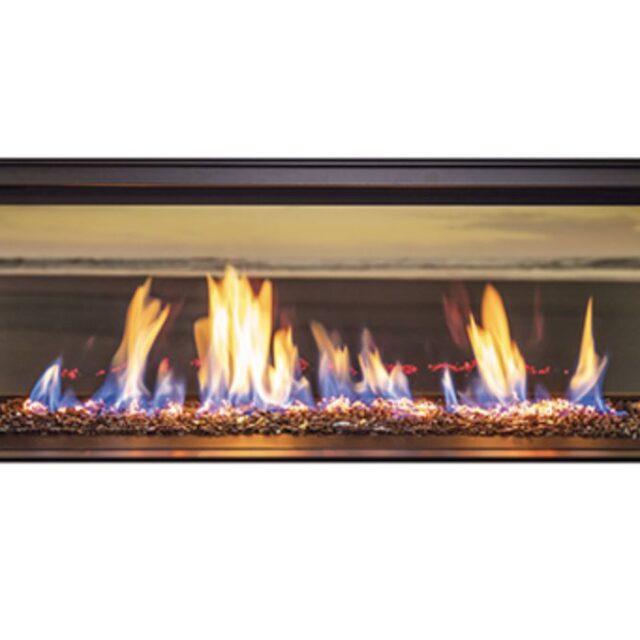

logs vs pebbles burn media
Picture flames above carefully crafted logs or stone pebbles while the room settles into winter comfort — Wi-Fi control via the Rinnai Fireplace App handles thermostatic settings and timers; the infra-red remote covers everyday flame adjustment. This is the stone-and-log media line: same frameless LS platform as the 1000F, different fuel-bed technology. Up to 8.0 kW output and a 5-star energy rating support open-plan and large living areas.

Which room will you enjoy it from?

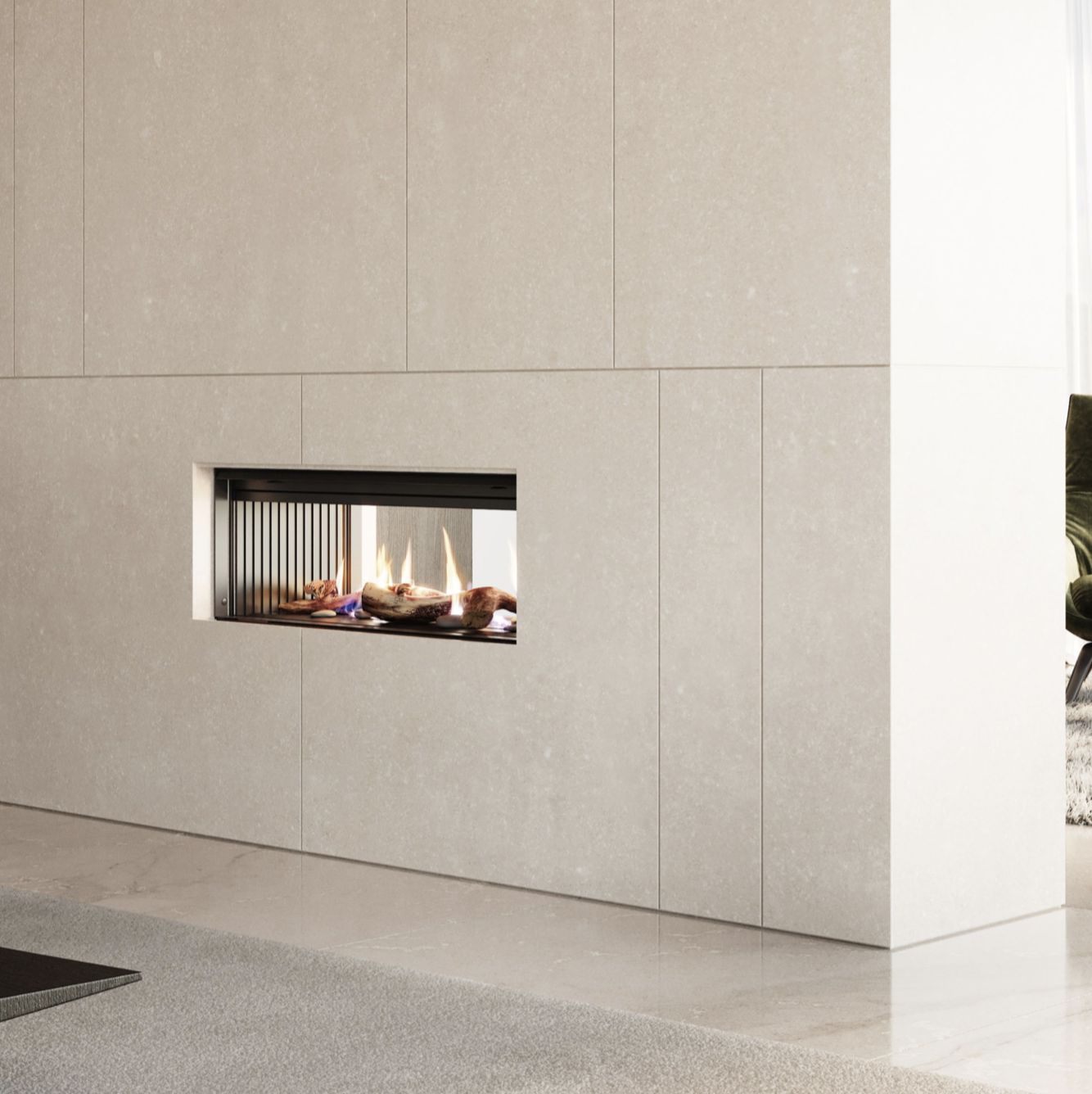

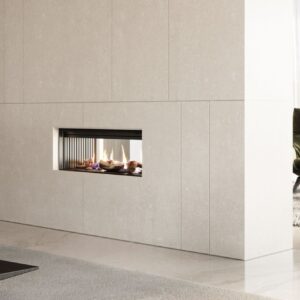

double-sided living room
Single-sided for a feature wall; double-sided when you want the fire to connect lounge, dining or an adjoining space. Flexible power flueing and a 2-speed convection fan make the LS 1000 installable in more locations than conventional flue-dependent fires. Optional peninsular kit extends double-sided layouts. Framing dimensions, hearth requirements and cavity ventilation are in the specification tables on this page.

Plan it with Wignells

Rinnai LS gas fireplace
If you are deciding between the LS 1000 stone/log media and the LS 1000F Flametech line, the choice is primarily about flame technology and aesthetic — Wignells can show you both approaches and coordinate quoting with your installer. Visit our Melbourne showroom to discuss the Rinnai LS 1000. For technical data, see the Features, Product Specifications and Installation Specifications tabs on this page.
Product familyLS Series — Frameless Inbuilt Gas Fireplace (stone/log media)
ModelLS 1000
Product codesKLS1000S / KLS1000D *(single / double sided)*

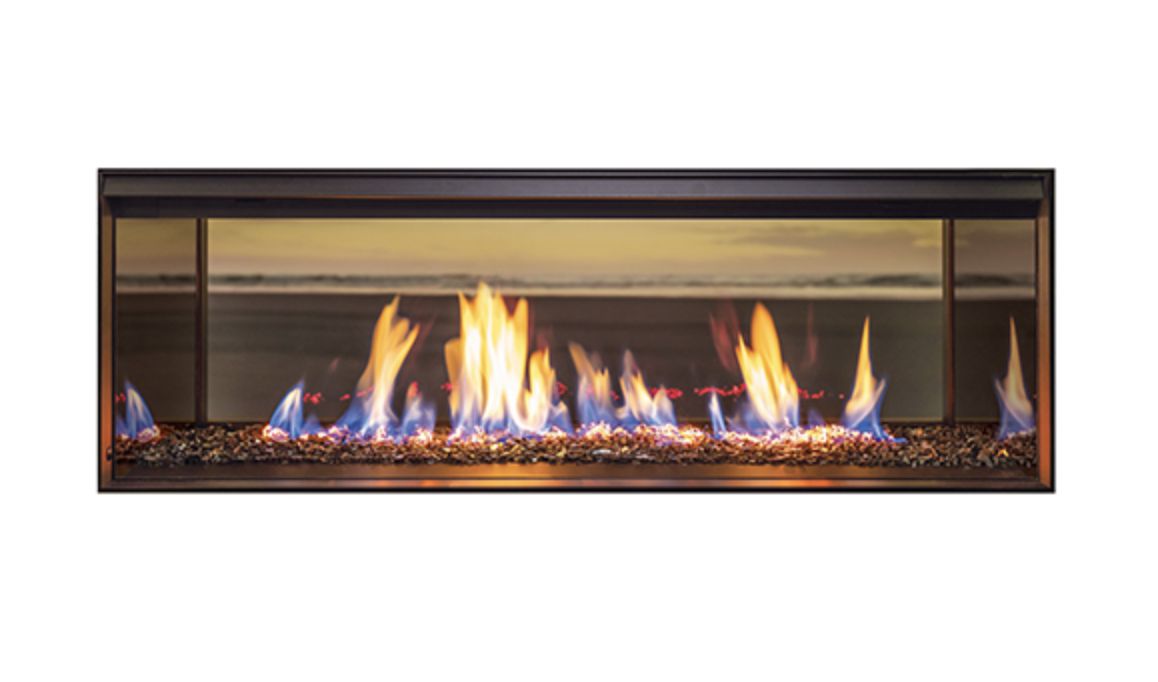

Burn mediaHighly realistic wood logs or stone pebbles
Flametech™ self-burning logsNo — distinct from LS 1000F line
Power flueYes — flexible routing; Rinnai flue system required
Wi-Fi controlYes — Rinnai Fireplace App
Non-reflective glassYes
Single or double sidedYes — configure at order; peninsular kit optional on double-sided
Safety mesh guardYes — supplied
Convection fan2-speed
Country of manufactureNew Zealand
Heat exchanger warranty10 years
Parts and labour warranty2 years
Model LS 1000
Fuel type Natural gas or LPG
Gas input — low 14 MJ/h
Gas input — high 35 MJ/h
Heat output range 3.2–8.0 kW *(varies with gas and flue type)*
Max heat output 8.0 kW
Star rating 5.0 stars *(varies with gas and flue type)*
Appliance width 1435 mm
Appliance height 745 mm
Appliance depth 435 mm
Viewable glass width 1000 mm
Viewable glass height 280 mm
Flue outer / inner diameter 75 mm / 50 mm
Heating capacity — cold climate 80 m²
Heating capacity — mild climate 124 m²
Packaged weight — single sided 100 kg
Packaged weight — double sided 125 kg
Model LS 1000
Installation type Frameless power-flued inbuilt gas fireplace — single-sided or double-sided per LS Installation Manual
Fuel supply Natural gas or LPG — ½″ BSP termination inside unit lower left
Flue system Rinnai power flue — 75 mm outer / 50 mm inner diameter
Electrical supply 1.5 m power cord with three-pin plug — high 50 W / standby <8 W
Window access Downward-opening window
Hearth 3 mm air gap between hearth and lower fire lip required — per LS specification guide
Combustible clearances 400 mm from glass edge — per installation manual
Peninsular kit Optional — double-sided models only
Gas connection Licensed gas fitter; compliance with AS/NZS 5601 and local authority requirements
Flue, install & hearth Quoted separately — not included in appliance price
Documentation LS Series Brochure, Specification Guide, Installation Manual — Rinnai downloads
